P2 Indoor SMD 3IN1 -1515 Flexible Creative LED Screen

Availability:
Quantity:
  • P2 Flexible LED screen

P2 Indoor SMD 3IN1 -1515 Flexible Creative LED Screen For Any Shape Advertising Media Cultural Tourism

Description:

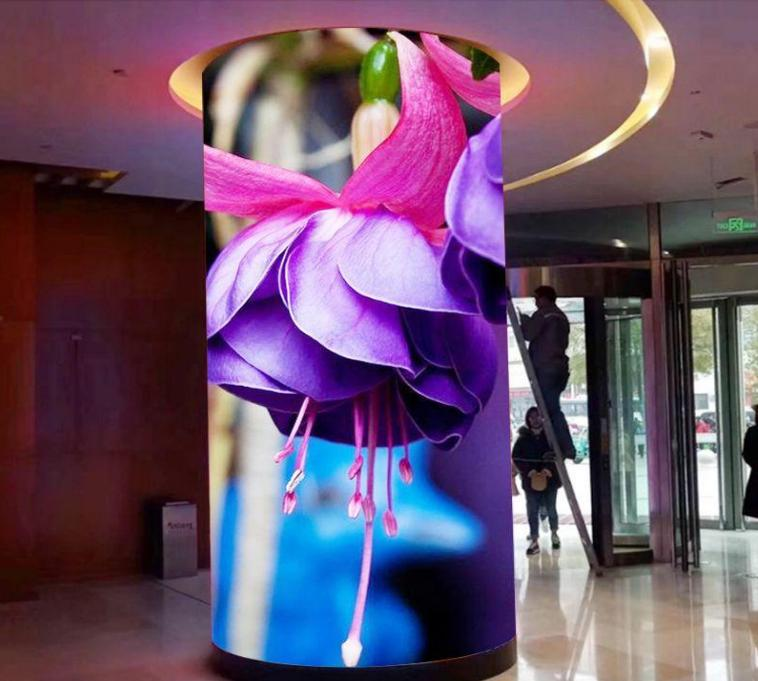

It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can be shaped into column to wrap pillars for animation decoration.Die-Cast Aluminum structure: Light weight, thin depth, excellent cooling effect ,High definition, and good stability.



FEATURES:


  • High flexibility

Can be any designed forrolled, bend and swing according to customers’ needs.


  •  Firm structure

The use of advanced SMT technology reduced the bad solder and static issue significantly Clean, exquisite and high color reproduction effect for video and text;


  • Intelligent techniques devices

Auto adjust the brightness is displayed by means of hardware / software implementation, without sacrificing picture quality and signal quality;


  • Ultra wide angle of view

The horizontal and vertical angles of view 140 degrees, and the high quality display effects can be seen at all angles;


  • High protection

High standard waterproof, dustproof, moisture-proof, anti-corrosion process, suitable for outdoor harsh environment for long-term use;


  •  Easy to maintenance

The easy adopts modular designed by pixel, and cabinet. The module can be easy front/rear maintenance;


  • Standardization

Standardized module and box, installation is quick and convenient, and the shipment is quick;


  • Energy saving and environmental protection

Excellent heat dissipation, low power consumption and high stability;


Application:

Perfect creative screen often used in shopping mall, restaurants, hotel,convention center, concerts, theaters, etc. to attract audence.


Model: P1.875 / P2 / P2.5 / P3 / P4 / P5


Parameter:

Item

P2-32s

Pixel Pitch(mm)

2

Pixel Configuration

SMD 3IN1 -1515

Physical Density

250000 dots/㎡

Pixel resolution

160dots(W)*80 dots(H)

Module size(mm)

320mm*160mm

Best view angle

140。(W) 120。(H)

Power Consumption(w/m)

Average:<320W/㎡

Max:<650W/㎡

White balance brightness(cd/㎡)

≥1000CD/㎡

Refresh Rate(Hz)

3840

Working voltage

AC220V±10%

Operating Temperature/Humidity(C/RH)

storage:-35℃~ +80℃ working:-20℃~ +50℃,10%-95% No condensation


微信截图_20240613144831


We can design the matching flexible LED module cabinet according to the CAD drawings provided by the customer; and provide the complete flexible LED screen solution to the customer.

pt25180618-flexible_creative_led_screen_for_any_shape_advertising_media_cultural_tourism


\

微信图片_20240613171050

pt25180615-slimmer_lighter_bendable_led_screen_irregular_led_screen_no_cabinet


微信图片_20240316172823

展会
