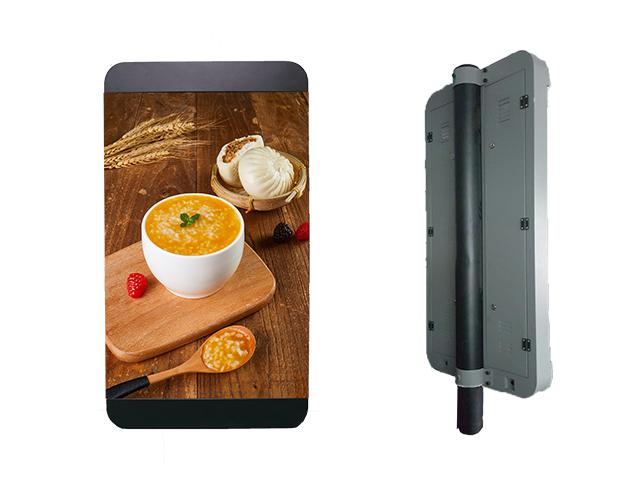

P3 Outdoor Waterproof HD Full Color Street Pole Led Display Screen

Availability:
Quantity:
  • P3-Out-street pole

Customized Outdoor Waterproof HD Video Full Color Street Light Pole Double Side Advertising Video Poste P3 Led Display Screen.

LED light pole screen - an LED display screen on a smart light pole, which can be used for multiple purposes. It can not only play audio, video, video, music, text, and other multimedia content, but also connect to WiFi on the phone to monitor the path, display temperature, humidity, wind direction, wind speed, and other situation data. At the same time, it can also broadcast information such as convenient transactions, achieve business value and livelihood functions, and monitor changes in the surrounding situation in real-time 360 degrees, and make corresponding feedback and consumer reactions. Currently, due to the construction of 5G, the market demand for LED pole screens is increasing. It can be said that 5G has opened a door for the construction of smart cities.


FEATURES

1.One installation, asynchronous remote control,update the picture at any time

2.High brightness up to 6,000cd/㎡

3.High resolution, smooth imaging

Customized Size       Customized Cabinet

Pixel Pitch:

P2.94 | P3 | P3.33 | 3.84 | P4 | P5 | 6


Specification


Item

P3-16s

Pixel Pitch(mm)

3

Pixel Configuration

SMD1921

Physical Density(Pixels/m)

111111

Display size(mm)

768*1452/576*1260mm

Module size(mm)

192*192

Best view angle

140°(W) 120°(H)

Power Consumption(w/m)

Average:310W,Max.:860W

White balance brightness

5500cd/㎡

Refresh Rate(Hz)

3840

Working voltage

AC110~240V±10%

Operating Temperature/Humidity(C/RH)

Storage: -35Working: -20,10%-95% No condensation

Remote control to change screen contents in batch

By using the remote control system installed on  terminal devices like the mobile phone or PC,  contents on the screen can be easily altered, and be managed in a timely and effective manner.

微信截图_20231129144950

High stability, intelligent lighting control, perfect visual effect

The product is made of high quality branded lamps and ICs ensuring its performance and high refresh rate is larger than 1920Hz; it is also equipped with intelligent lighting control    system, which can automatically adjust its screen  brightn e s s  to offer  au di en c e s  a comfortable view experience.


High waterproof rate up to IP65 against natural elements

The front waterproof rate is high up to IP65  protecting it from early aging and other natural damages. So its presentation is less effected and remains brilliant long.


Intelligent modular self-checkoptional

The c i rcuits of modules function with intelligent self-check, by which the remote surveillance can detect failure or malfunction of lamps and locate their places in the circuits,meaning that the system can cut off costs to send technicians for field overhaul.


微信截图_20231129144950图片1

Several installation methods that meet customers needs.


                 微信图片_20240316172823
