High Brightness P10 Outdoor Fixed LED Display

Outdoor Fixed LED Display , Pitch 10mm,10000 Dots/sqm,Brightness 7000cd/sqm,LED Type SMD3535,High Light roadside led display, outdoor smd led screen
Availability:
Quantity:
  • P10 out/fixed

High Brightness 7000cd/sqm SMD3535 P10 Outdoor Fixed LED Display for Large Commercial advertising Billboard


Features:
Display contents real-time updates, high brightness, high definition, size and shape can be designed upon client's actual requirement, exquisite, vivid display effects, big viewing angle etc.
The full color LED Display has brought us a colorful world, LED display attract more viewers for less cost than other standard media using targeted messages that capture your audience with light, motion and color.

Widely applications:

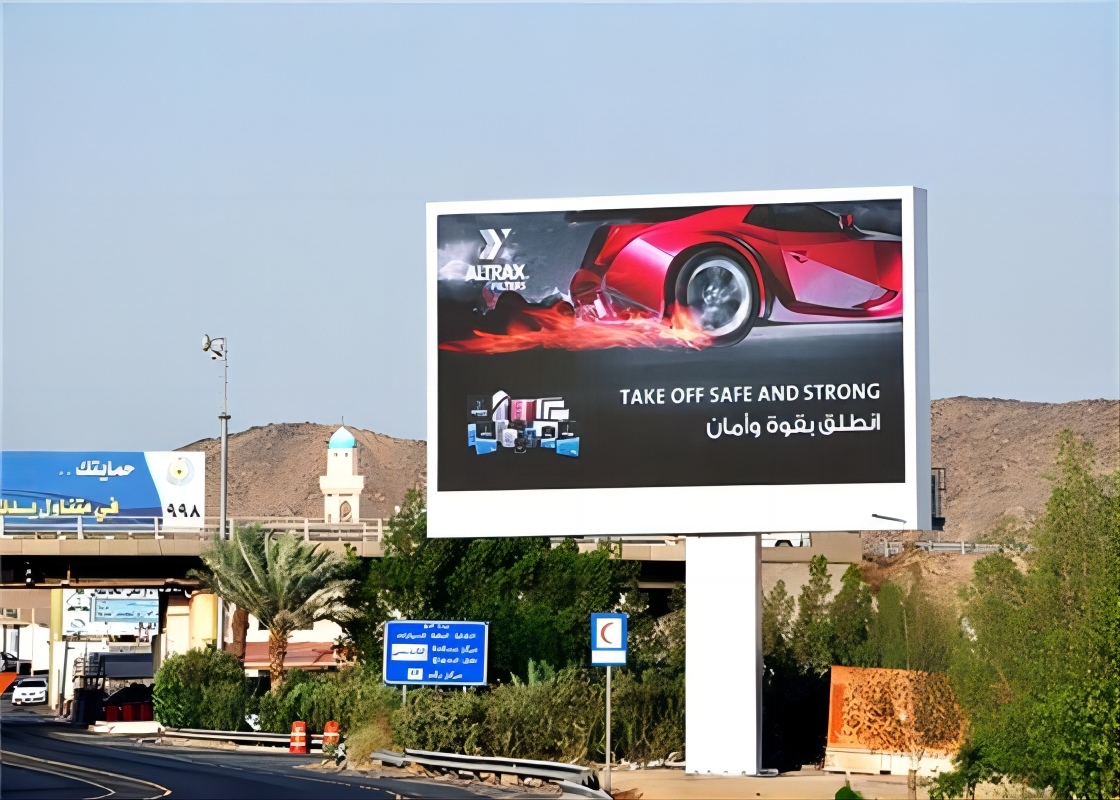

Mainly used to do outdoor advertisement just like TV, in addition, it also can be used to play the Events, Showing, Cinema, Sports, etc.


Parameters

Item

P10-2S

P10-4S

Pixel Pitch(mm)

10

10

Pixel Configuration

SMD3535

SMD3535

Physical Density(Pixels/m)

10000

10000

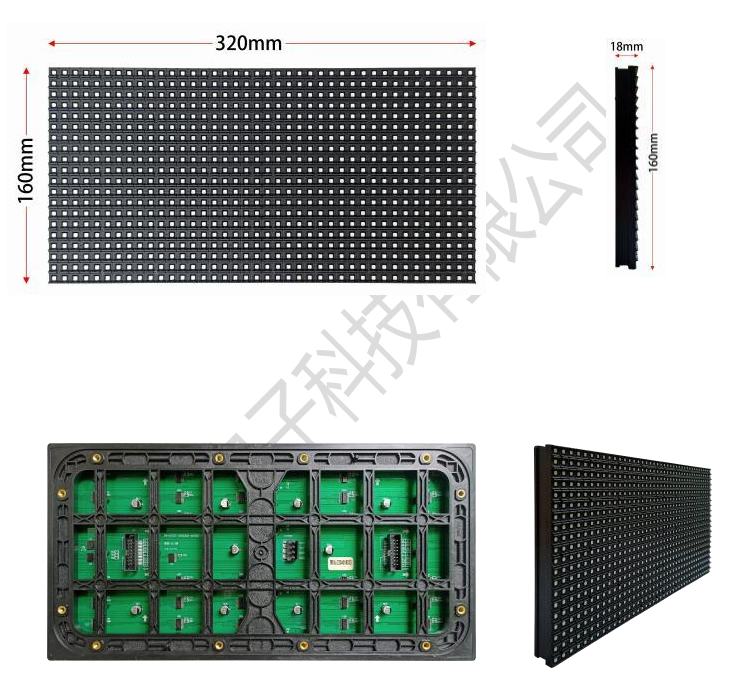

ModuleSize(L×W×H)mm

320×160

320×160

Cabinet Size(LxWxH)mm

960×960x75

Brightness(cd/㎡)

7500

5500

Gray Scale(bit)

16

AVE.Power Consumption(w/m)

<350

<250

Module Weight(kg)

0.35

0.35

Viewing Angle

H:140°;V:140°

Control Distance

Cable100m,Multimode500m,Single mode 2km

Frame Frequency(Hz)

65

Refresh Rate(Hz)

3840

Lifetime(hrs)

100000

Input Voltage

AC110-220V/5V 60Hz

Operating Temperature/Humidity(C/RH)

Working:-20-65℃;Storage:-40-85℃/-30℃to 60℃;humidity Rh10%to 95%
