Indoor/outdoor P3.91 Rental LED Display for Stage Event

Cabinet zise:500*500/1000mm,Cabinets Weighs only 6.5kg and 12.5kg;
Universal Compatibility :
- Modules have no left/right distinction; indoor and outdoor cabinets are universally applicable, helping customers reduce inventory costs.
Hard Connection Technology
- Circuits are integrated into the HUB (hub), no additional wiring is required. This makes wiring neater, improves aesthetics, enables easy installation, saves installation costs, and ensures more stable and reliable operation.
Availability:
Quantity:
  • In/Out P2.3.91 500*500/1000mm

  • Vegoo

Product   Features
   - High refresh rate, high brightness, high contrast  ratio, and seamless free splicing.
  - Unique appearance design, die-cast aluminum  custom-molded product, and lightweight:  500x500mm cabinet weighs 6.5kg, 500x1000mm  cabinet weighs 12.5kg, with a thickness of 70mm. It is  easy to carry and install, and saves shipping costs.
   - Each cabinet is equipped with corner protectors,  which can well protect the modules during transportation and prevent collision damage.
   - Supports front and rear maintenance for easier  service; outdoor cabinets have an IP65 waterproof  rating.

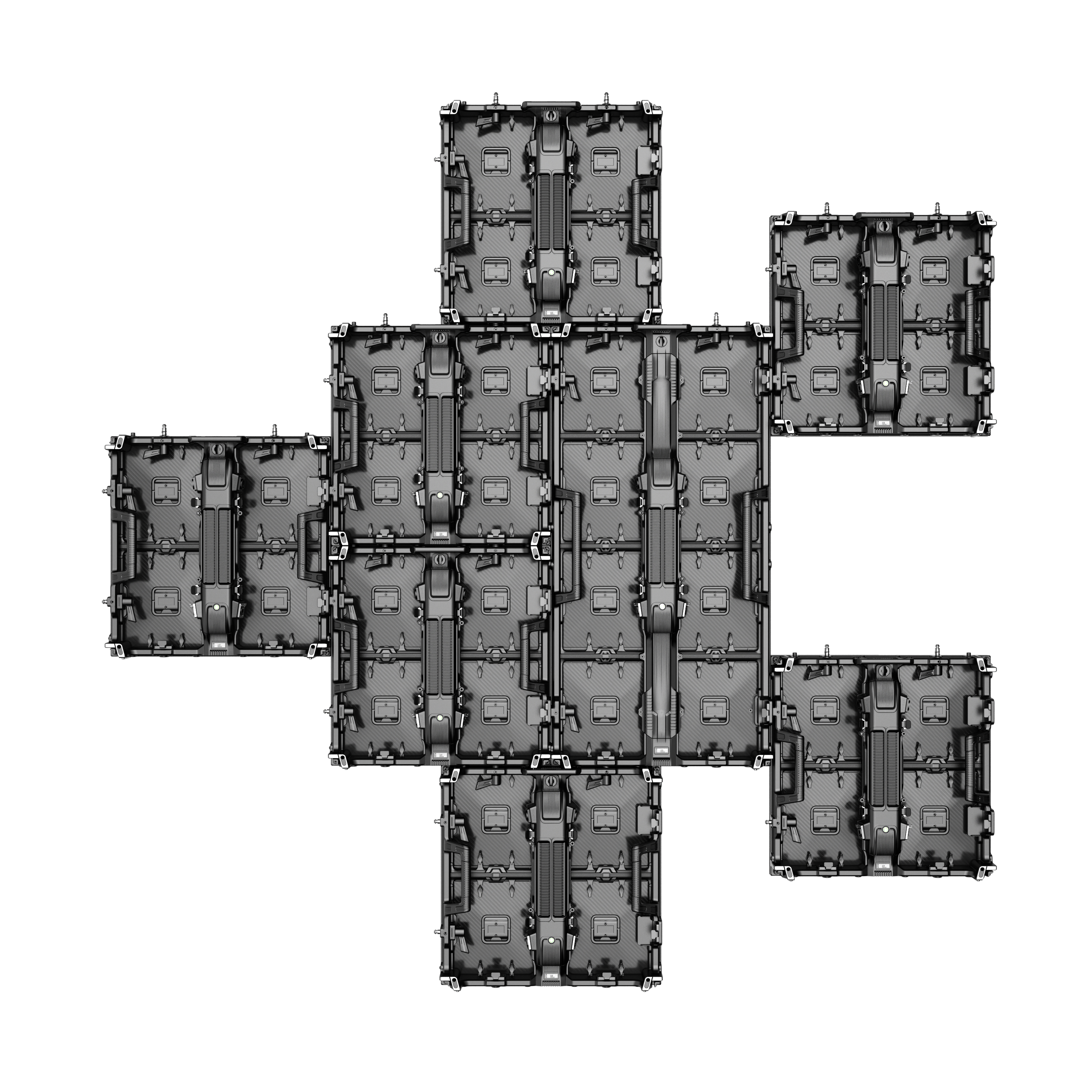

互拼_DeMain_0005

Innovative   Technologies
 Universal Compatibility :
  - Modules have no left/right distinction; indoor and  outdoor cabinets are universally applicable, helping  customers reduce inventory costs.

Hard Connection Technology
- Circuits are integrated into the HUB (hub), no additional wiring is required. This makes wiring neater, improves  aesthetics, enables easy installation, saves installation  costs, and ensures more stable and reliable operation.

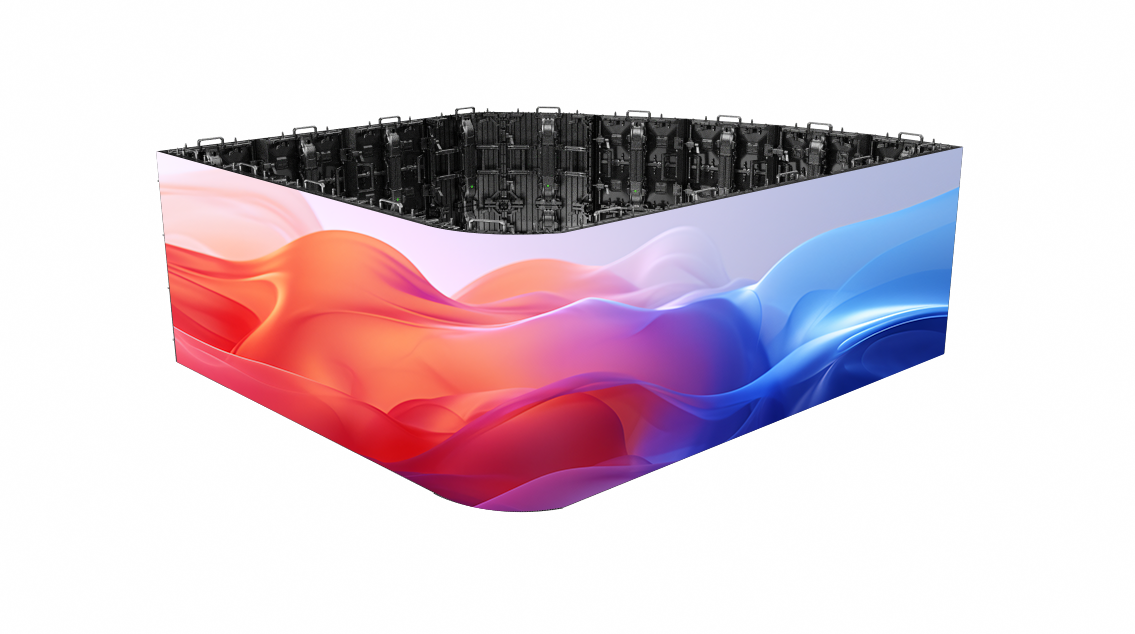

微信图片_20251118182937 Splicing   Advantages
   - Arbitrary splicing combination: Standard cabinets, 45°beveled-edge cabinets, arc-lock cabinets, and flexible  cabinets—any two cabinets can be assembled and spliced at any angle, creating distinct stage structures for customers.

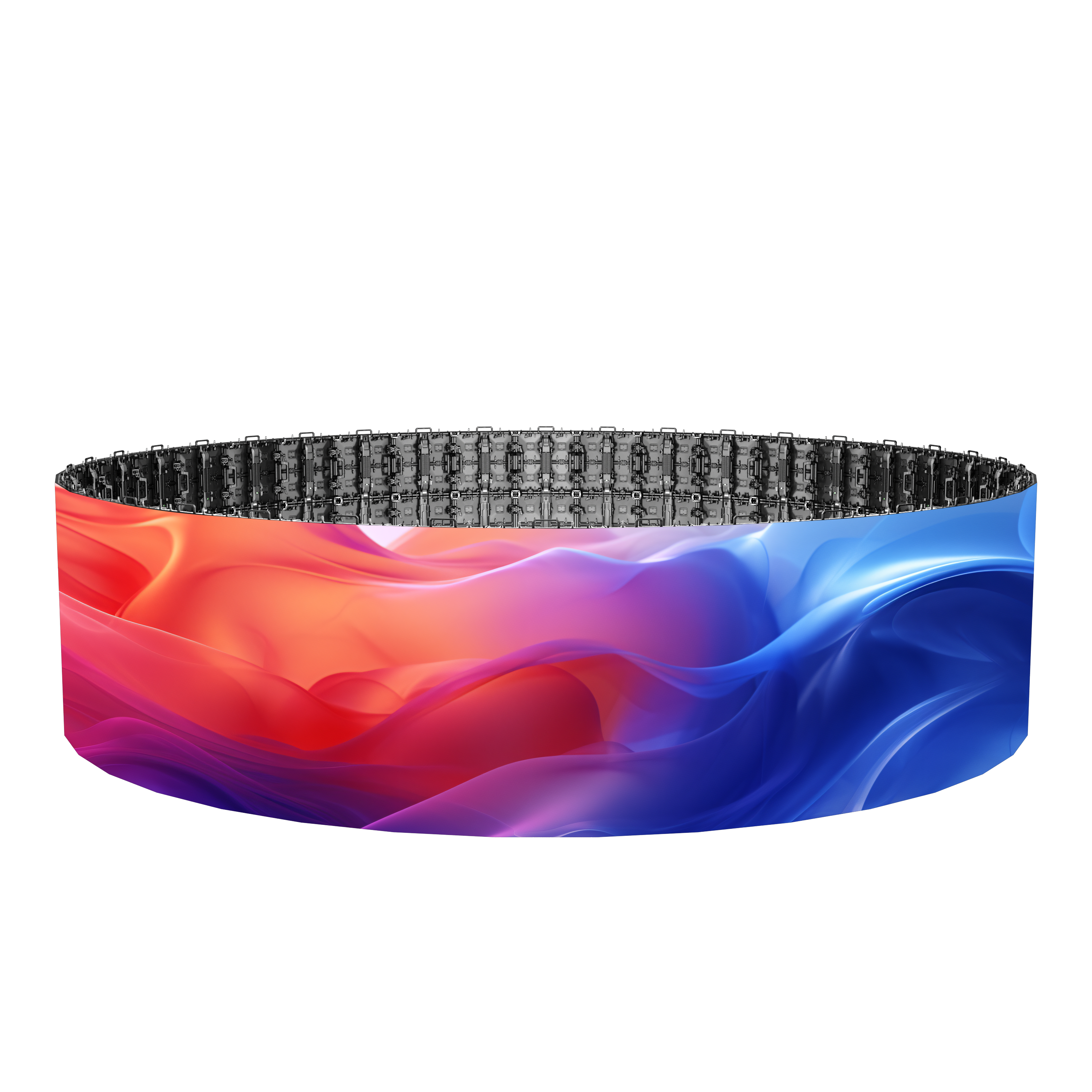

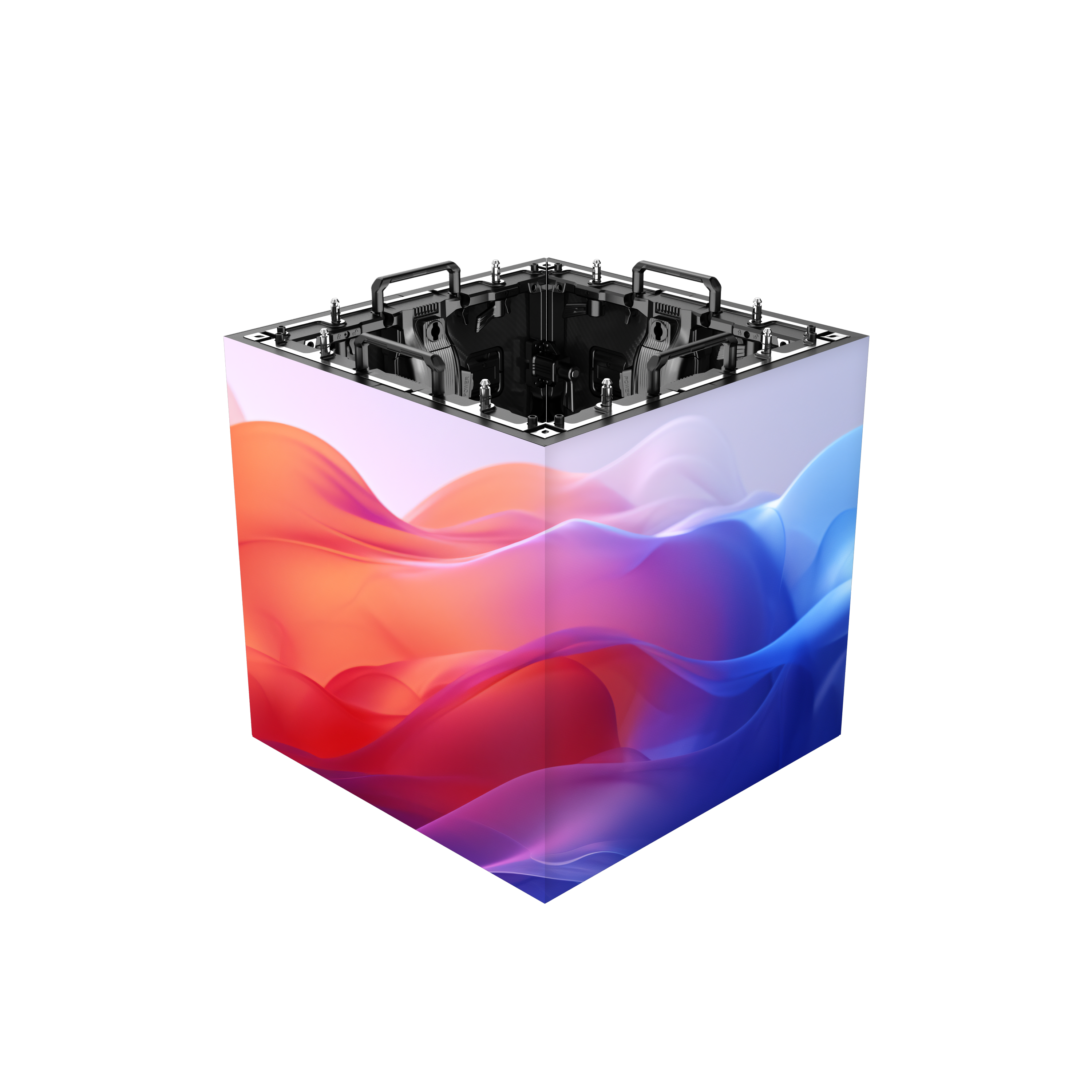

- Diverse shapes: Supports mixed splicing, as well as inner/outer arc "S-shaped" splicing, cylindrical splicing, circular  splicing, and cube splicing (90° splicing).
圆形_DeMain_0005

Indoor parameter

LED Type SMD1212 SMD1415 SMD1921 SMD1921
Pixel pitch 1.953mm 2.604mm 2.976mm 3.906mm
LED module size 250*250mm 250*250mm 250*250mm 250*250mm
Resolution(HxW) 128*128 96*96 84*84 64*64
LED driving method 32S 32S 21S 16S
Cabinet Size 500*500mm/500*1000mm
Cabinet Resolution 256*256 192*192 168*168 128*128
Cabinet Material Die-casting Aluminum
Cabinet Weight/Set 7.0kg/13.5kg
Ingress Protection IP65
Power AC 240/100+10%
Serviceability Front/Rear serwice
Max.Power consumption 200W 200W 200W 200W
Avg.Power consumption 75W 75W 70W 70W
WiewingAngle(H/M) 160°/120° 140°/120° 140°/120° 140°/120°
Brightness(nit/m) ≥3500nits ≥3500nits ≥ 4000nits ≥ 4300nits
Processing 14-16bit
Refresh rate 7680-10000Hz
Pixel density(pixel/m) 147456 112896 65536 43264
Contrast ratio 5000:1
Colors 281trillion
Temperature/Humidity -10℃ to+65℃:10%to 90%
Lifetime(50%brightness) 100000 hours
Certification FCC CE ROHS PSE BIS

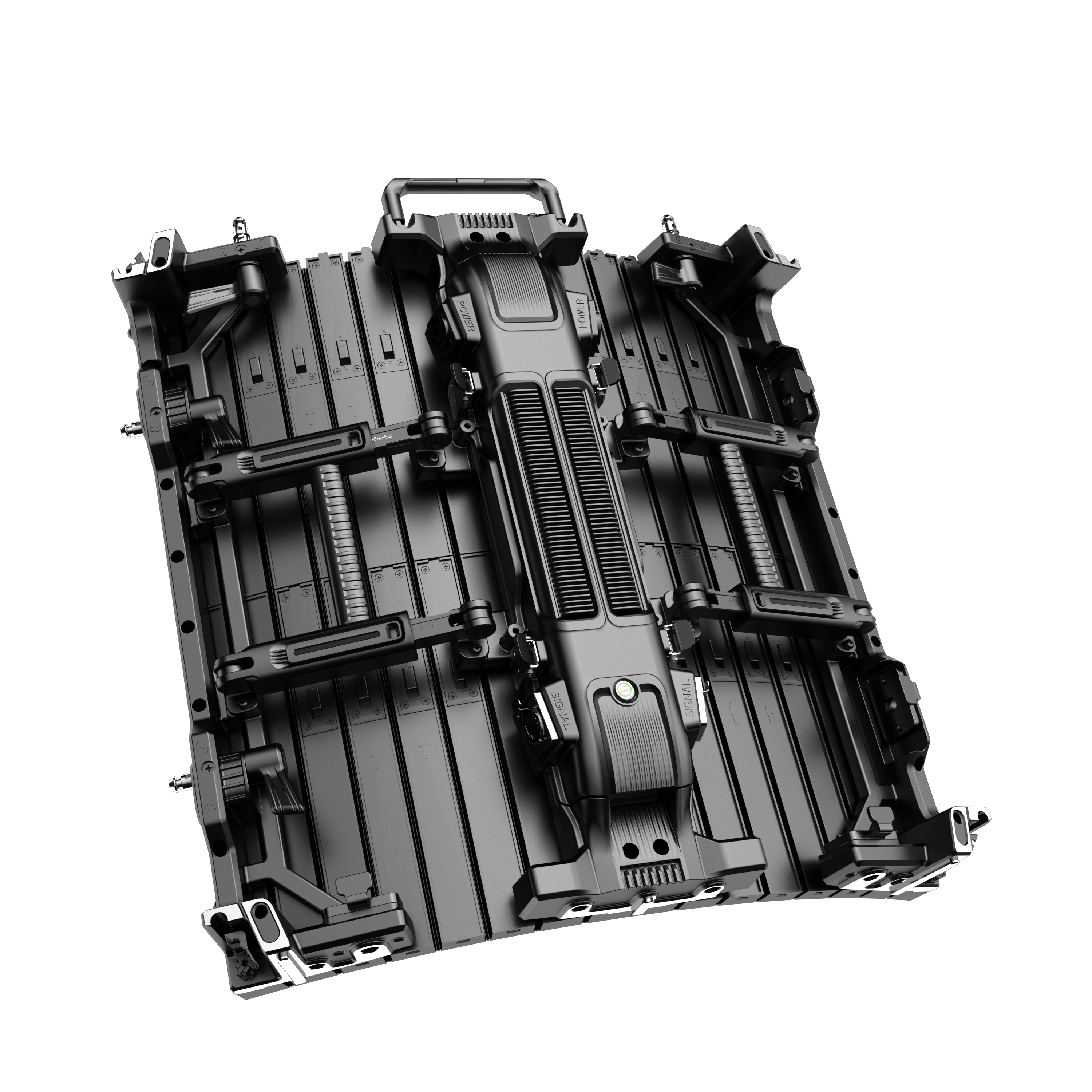

柔性央视_DeMain_0005Outdoor parameter

LED Type SMD1010 SMD1515 SMD1515 SMD1515 SMD2020 SMD2020
Pixel pitch 1.5625mm 1.953mm 2.5mm 2.604mm 2.976mm 3.906mm
LED module size 250*250mm 250*250mm 250*250mm 250*250mm 250*250mm 250*250mm
Resolution(HxW) 160*160 128*128 100*100 96*96 84*84 64*64
LED driving method 40S 32S 25S 16/32S 21S 8/16S
Cabinet Size 500*500mm/500*1000mm
Cabinet Resolution 320*320 256*256 200*200 192*192 168*168 128*128
Cabinet Material Die-casting Aluminum
Cabinet Weight/Set 6.5kg/12.5kg
Ingress Protection IP40/IP44(Surface waterproof treatment)
Power AC 240/100+10%
Serviceability Front/Rear serwice
Max.Power consumption 200W 200W 200W 200W 200W 200W
Avg.Power consumption 80W 75W 75W 75W 70W 70W
Wiewing Angle(H/) 160°/120° 160°/120° 140°/120° 140°/120° 140°/120° 140°/120°
Brightness(nit/m²) 600-800nits 700-1000nits 800-1200nits
Processing 14-16bit
Refresh rate 3840-7680Hz
Pixel density(pixel/m) 262144 147456 112896 112896 65536 43264
Contrast ratio 5000:1
Colors 281trillion
Temperature/Humidity -10℃to+65℃:10%to 90%
Lifetime(50%brightness) 100000 hours
Certification FCC CE ROHSPSE BIS



安装


微信图片_20240316172823


For the product “Indoor/outdoor high definition P2.976 rental LED display”, here are some possible Frequently Asked Questions (FAQ) and their answers:

1. What is P2.976?
P2.976 refers to the pixel pitch of the LED display in millimeters (mm). This means that the distance between each pixel point is 2.976 millimeters. Smaller pixel pitch means higher resolution and clearer picture.

2. Is this LED display for indoor or outdoor use?
This LED display is designed for both indoor and outdoor use with high clarity and the ability to adapt to different light conditions.

3. What is the brightness of this display?
Brightness will vary depending on the specific model, but in general, indoor and outdoor LED displays can be as bright as 1,000-6,000 nits to adapt to different light conditions indoors and outdoors.

4. What is the size and weight of the display?
The size and weight depend on the specific configuration of the display and the number of modules. Typically, rental LED displays are designed to be lightweight and easy to install for transportation and quick setup.

5. What is the refresh rate of the display?
A high refresh rate reduces image flicker and provides a smoother visual effect. The refresh rate of this display is usually above 1920Hz, which is suitable for dynamic video content.

6. What is the viewing angle of the display?
The viewing angle determines the maximum angle at which the viewer can see a clear image. These LED displays usually have a wide viewing angle of more than 140 degrees, ensuring that viewers in different positions can see high-quality images.

7. Does the display support HD signal input?
Yes, this display supports a variety of high-definition signal inputs, including HDMI, SDI, etc., which is compatible with a variety of video sources.

8. What are the maintenance and care requirements for the display?
Regular cleaning and inspections are necessary to maintain optimal performance of the display. Avoid extreme temperature and humidity conditions to prevent damage.

9. What is the energy consumption of the display?
The energy consumption of LED displays is relatively low, depending on the size and brightness settings of the display. The energy saving mode and intelligent brightness adjustment function can help to further reduce energy consumption.

10. What is the lifespan of the display?
Under normal use and maintenance, the service life of LED display can reach more than 100,000 hours.

11. Is the display waterproof?
For LED displays used outdoors, they are usually waterproof to a certain degree, such as IP65 rating, which prevents dust from entering and resists spraying water.

12. Does the display support customization?
Yes, many LED display manufacturers offer customization services, which can adjust the size, resolution and features according to customers' specific needs.
