Out P2.5 soft module
Outdoor Full Color Soft Module P2.5 (1415):
Specification Model : P2.5-1415-16S
Specification Description: Outdoor Soft Module
Module Structure: Integrated Lamp Driver
Lamp Bead Specification: 1415
Product Features
★ The module adopts a universal standardized 320*160mm size display module.
★ High-quality lamp beads, high refresh constant current driver IC, low temperature energy-saving, high refresh and high brightness.
★ The module can be maintained from the front and back, and the assembly box can be locked with screws and magnets. It has IP65 waterproof design on the front and back, and can bend up to 145 degrees. The minimum diameter of the circle is 61cm.
★ Standard hard modules can be customized and produced together, using the same batch of lamp bead covers. Outdoor installation does not require air conditioning, and quick assembly saves time.

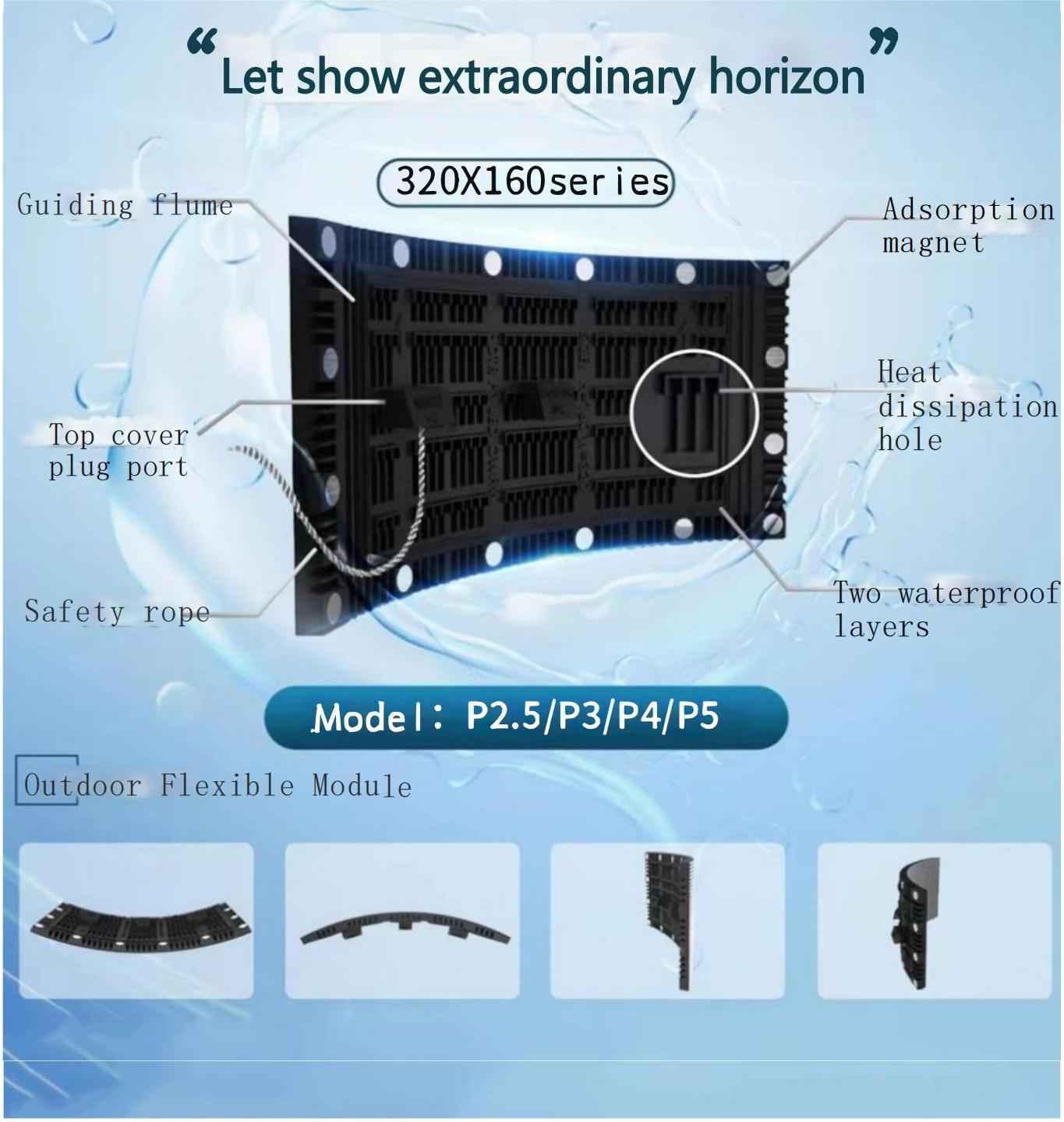

★ Independently developed, designed, and produced, the PCB and kit are patented products. The bottom shell design has water guide grooves, waterproof rings, and heat dissipation holes. It can prevent rainwater from entering the box and protect the IC and product lifespan. It has efficient dustproof, waterproof protection, uniform ink color, and UV-resistant mask kit. The outdoor LED display soft module has undergone multiple high and low temperature function tests and scanning layer detection. It is a mature product with stable performance and leading industry standards.

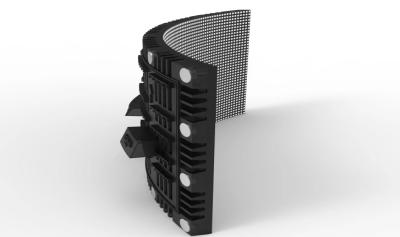

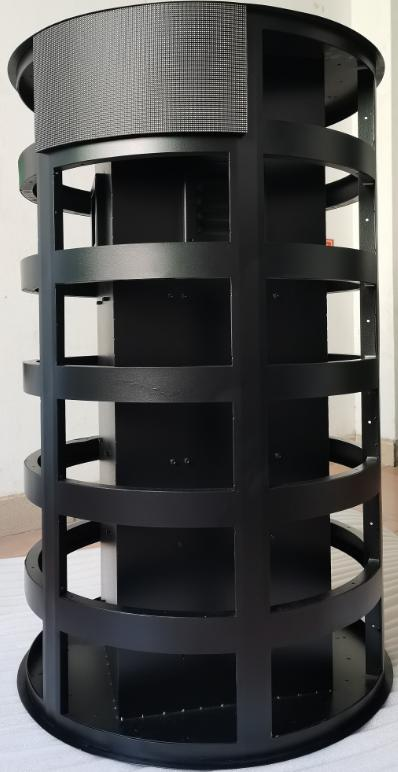

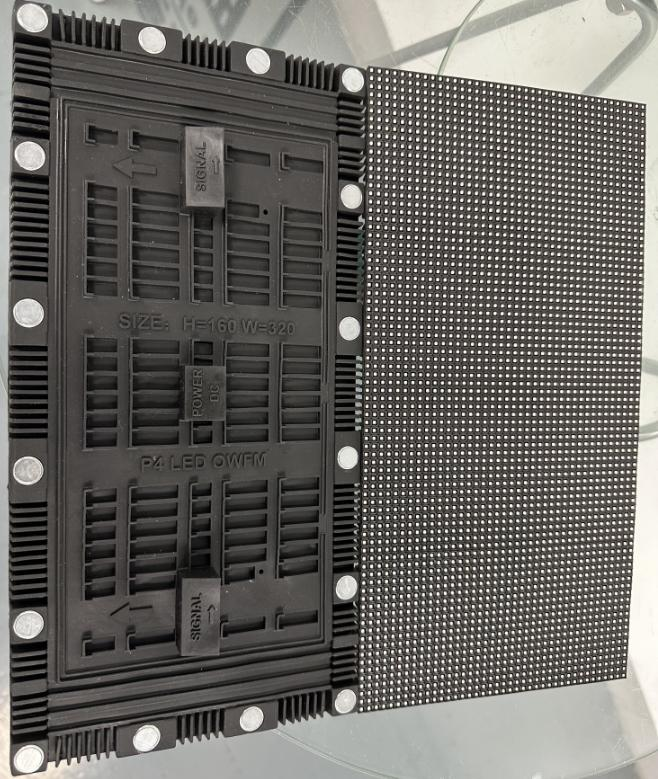

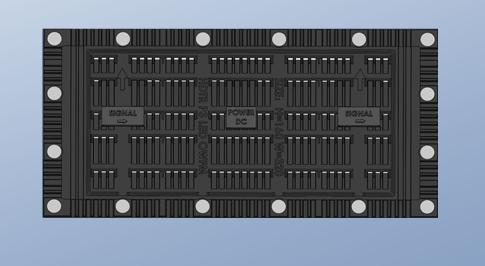

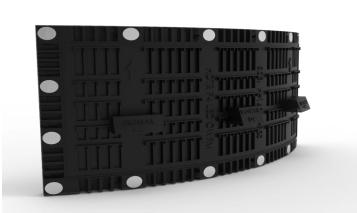

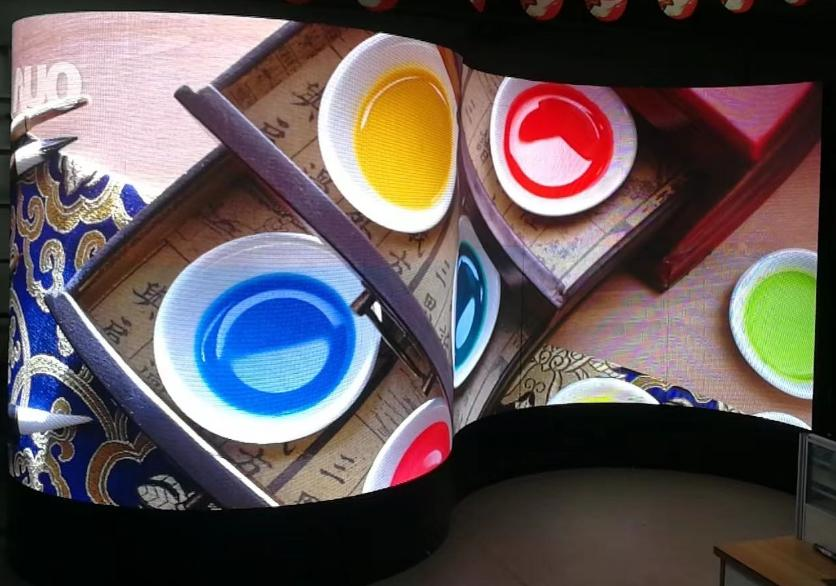

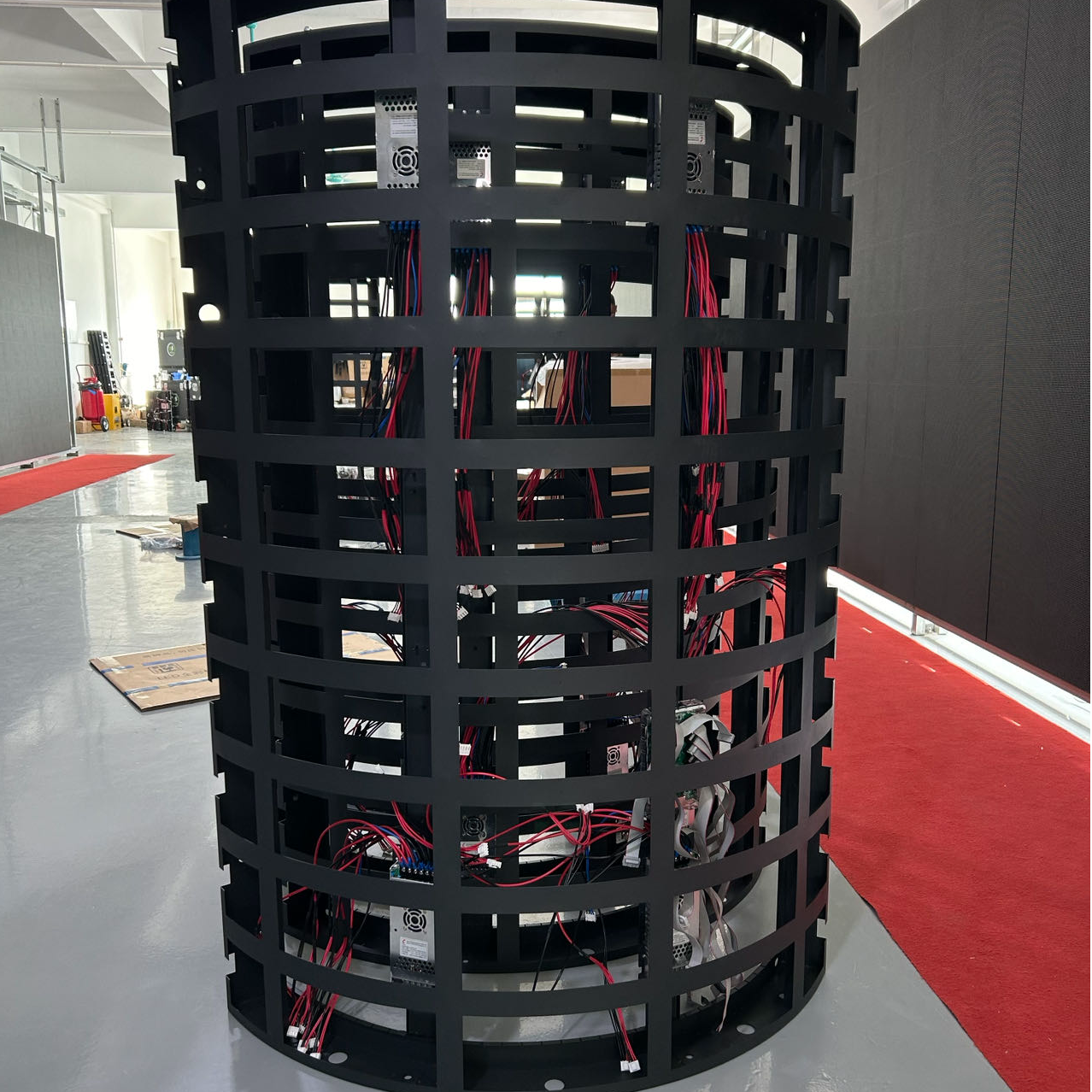

★ Suitable for outdoor media, lamp post screens, cylindrical screens, inner and outer curved screens, 3D corner screens,irregular ribbon screens, and various irregular screens. Three. Module picture display.

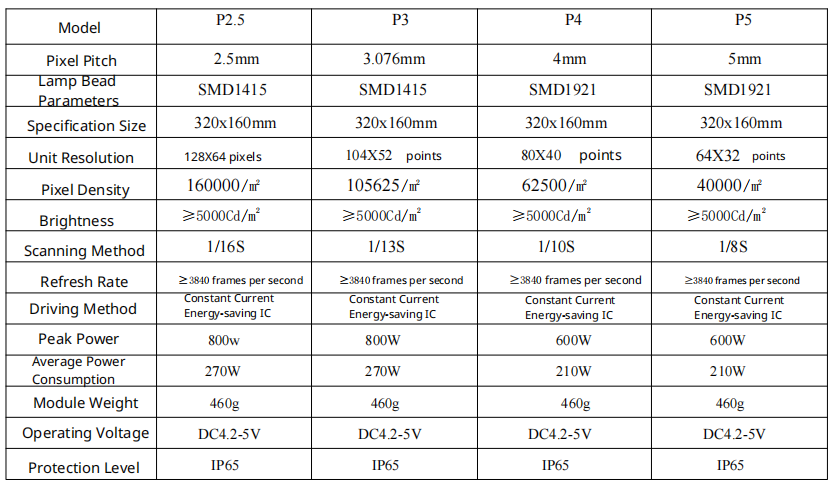

Outdoor soft module model specification parameter

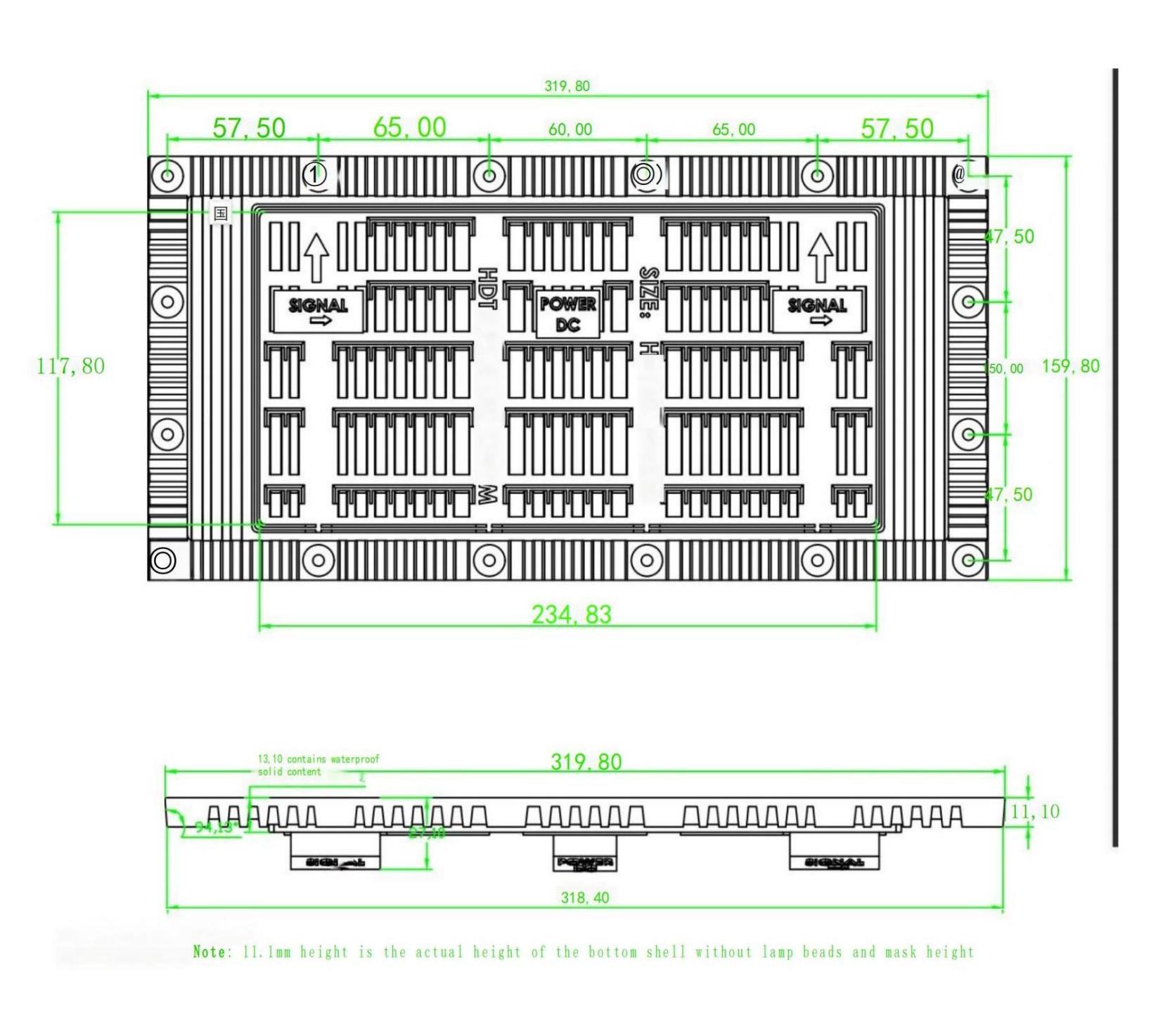

Module hole size diagram:

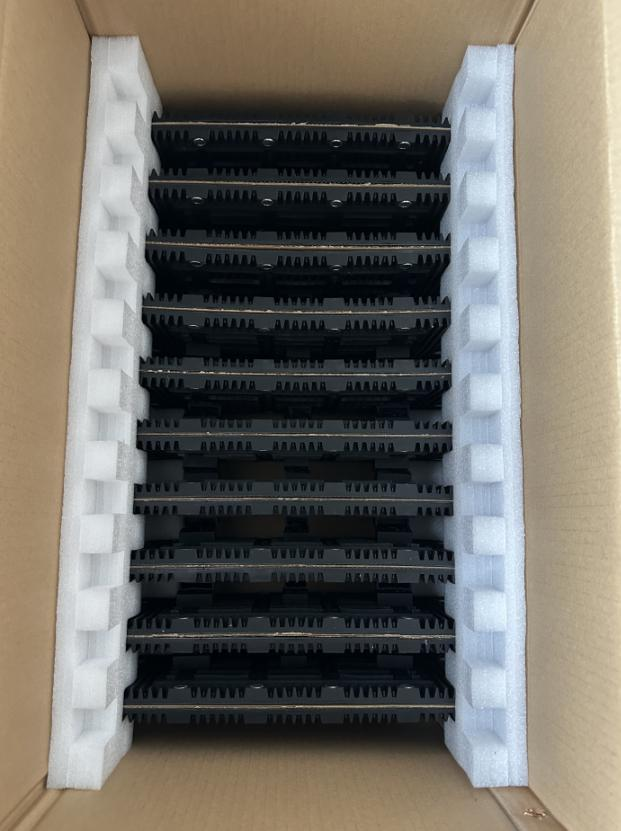

Packing pictrue:
