In-P4
P4 indoor led wall indoor screen
Die-casting aluminum,ultra power saving,High refresh,low light high gray,High precision,seamless splicing ,No fan,mute design,noise-free Low power,Eco-friendly.
Features:
1. High definition and could be adjusted, so it can meet the request of the customers according the application environments.
2. Wide application, good for rental or fixed installation.
3. Adopt high-intensity aluminum, has a better anti-rust and corrosion resistant capacity.
4. with 10KG in weight and 70mm in thickness. Common cabinet with 20KG in weight and thickness with 100mm.
5. 48 hours for led module test and 72 hours for led screen test to ensure the perfect quality.Work temperature -20~+40 deg
6. Professional lock design makes seamless connection available.
7. High gray scale and stable performance,realize the HD and exquisite image.
Parameter
Item | P2-40s | P2.5-32s | P3.076-26S | P4-20S | P5-16S |
Pixel Pitch(mm) | 2 | 2.5 | 3.076 | 4 | 5 |
Pixel Configuration | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
Physical Density(Pixels/m) | 250000 | 160000 | 105625 | 62500 | 40000 |

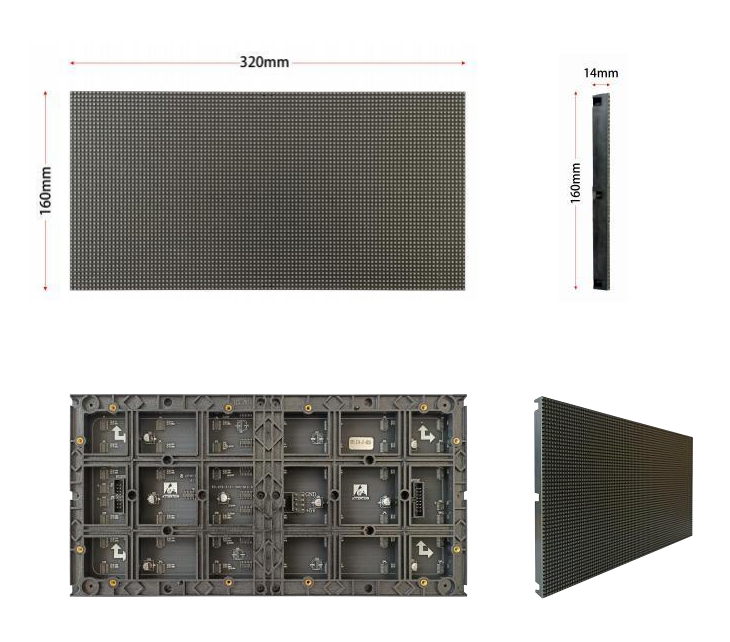

ModuleSize(LxW)mm | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
Module weight (kg) | 0.35 | 0.2 | 0.325 | 0.32 | 0.16 |
Cabinet Size（mm） | 960×960×75 | ||||
Brightness(cd/㎡） | ≥860 | ≥860 | 700 | 700 | ≥1200 |
Gray Scale(bit) | 16 | ||||
AVE.Power Consumption(w/m) | <320 | >300 | 220 | 165 | <220 |
Frame Frequency(Hz) | 65 | ||||
Refresh Rate(Hz) | 3840 | ||||
Input Voltage | AC110 /AC240V±10% | ||||
Operating Temperature/Humidity(C/RH) | Working:-20-65℃;Storage:-40-85℃/-30℃to 60℃;humidity Rh10%to 95% | ||||

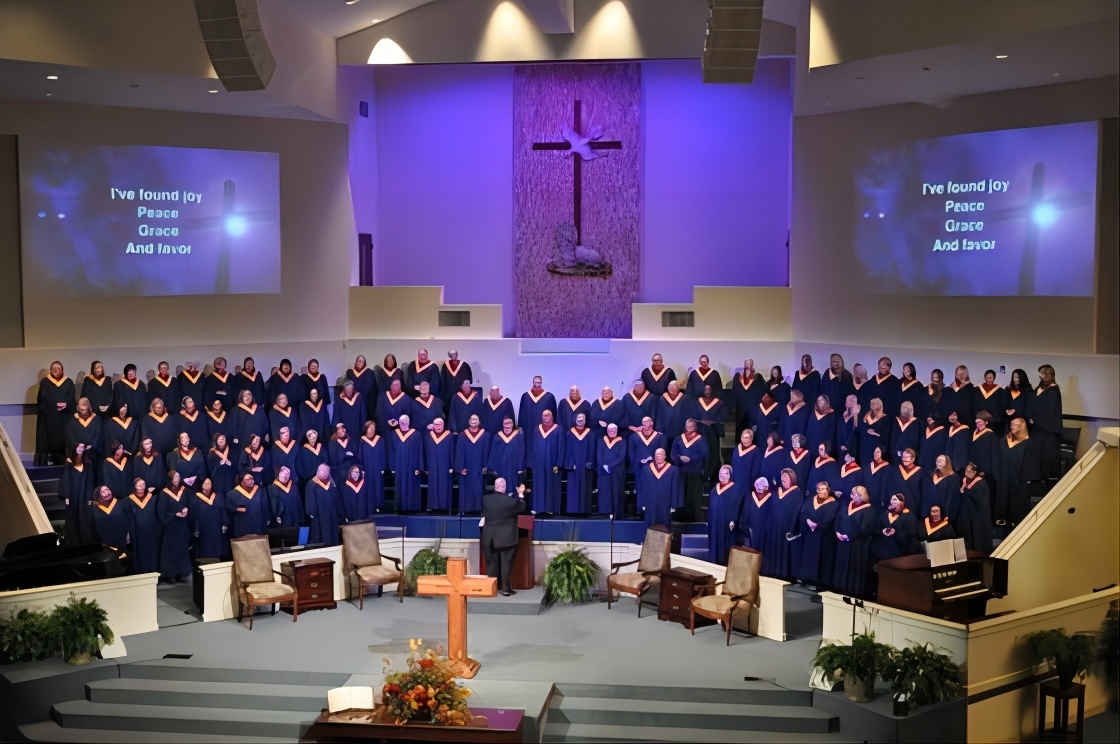

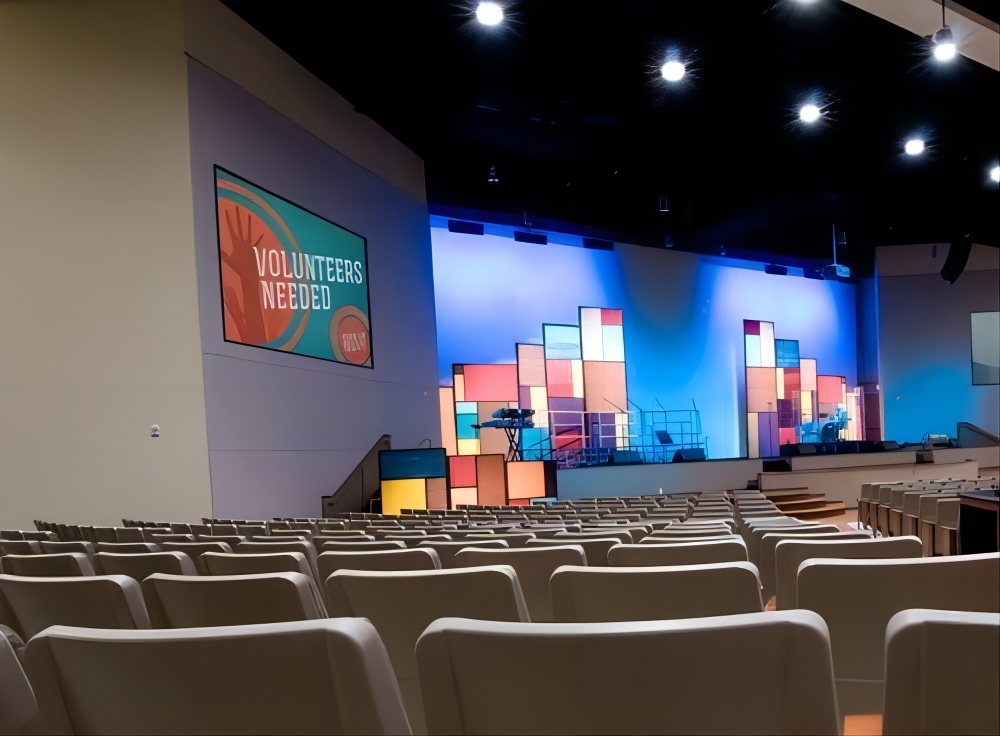

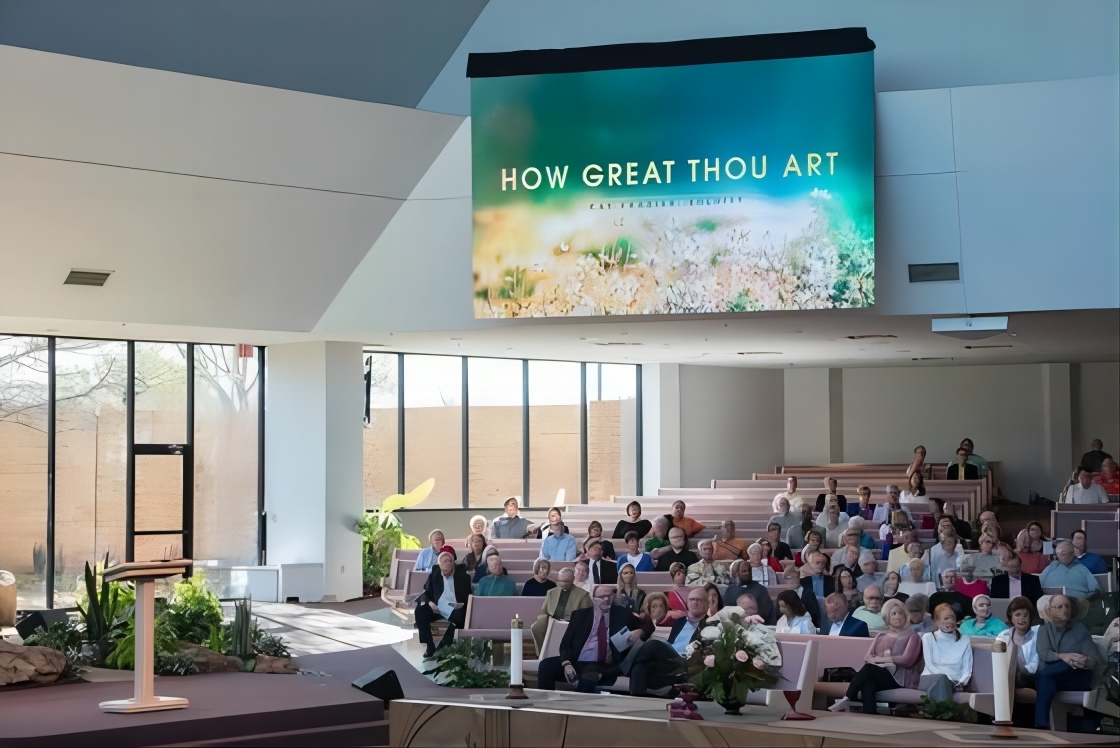

Case:Indoor Advertising,video Commercial Ad,publicity
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
3. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
4. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
