Indoor P3.076 full color fixed LED display

Die-casting aluminum,ultra power saving ,high refresh,low light high gray ,high precision,seamless splicing,no fan,mute design,noise-free ,low power,Eco-friendly
Availability:
Quantity:
  • In-P3.076

Features:

  • Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

  • Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.

  • Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively.

  • The effect of the display will be more clear and exquisite.

  • Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful

  • Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.

  • Full compatible: new structure design which can demand the indoor displays’ require.


parameter

Item

P3.076-26S

Pixel Pitch(mm)

3.076

Pixel Configuration

SMD2020

Physical Density(Pixels/m)

105625

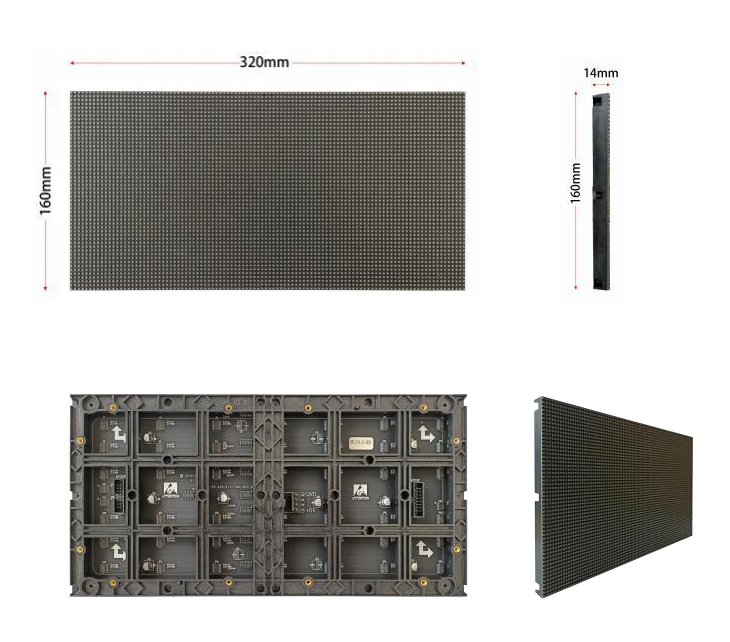

ModuleSize(LxW)mm

320*160

Module weight (kg)

0.325

Cabinet Size(mm)

960×960×75

Brightness(cd/㎡)

700

Gray Scale(bit)

16

AVE.Power Consumption(w/m)

220

Frame Frequency(Hz)

65

Refresh Rate(Hz)

3840

Input Voltage

AC110 /AC240V±10%

Operating Temperature/Humidity(C/RH)

Working:-20-65℃;Storage:-40-85℃/-30℃to 60℃;humidity Rh10%to 95%


微信图片_20240316172823

Widely applications:

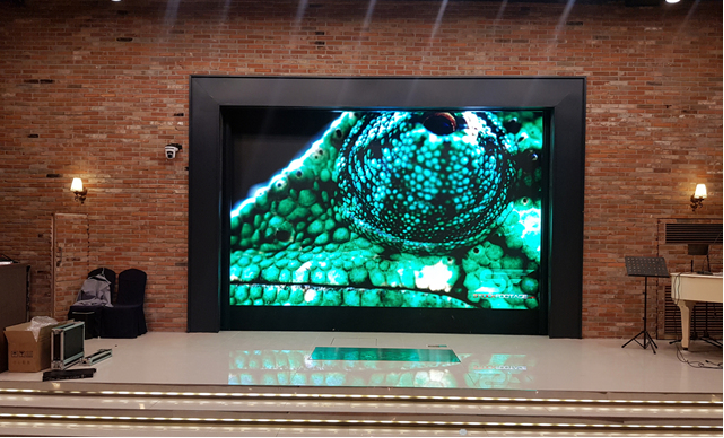

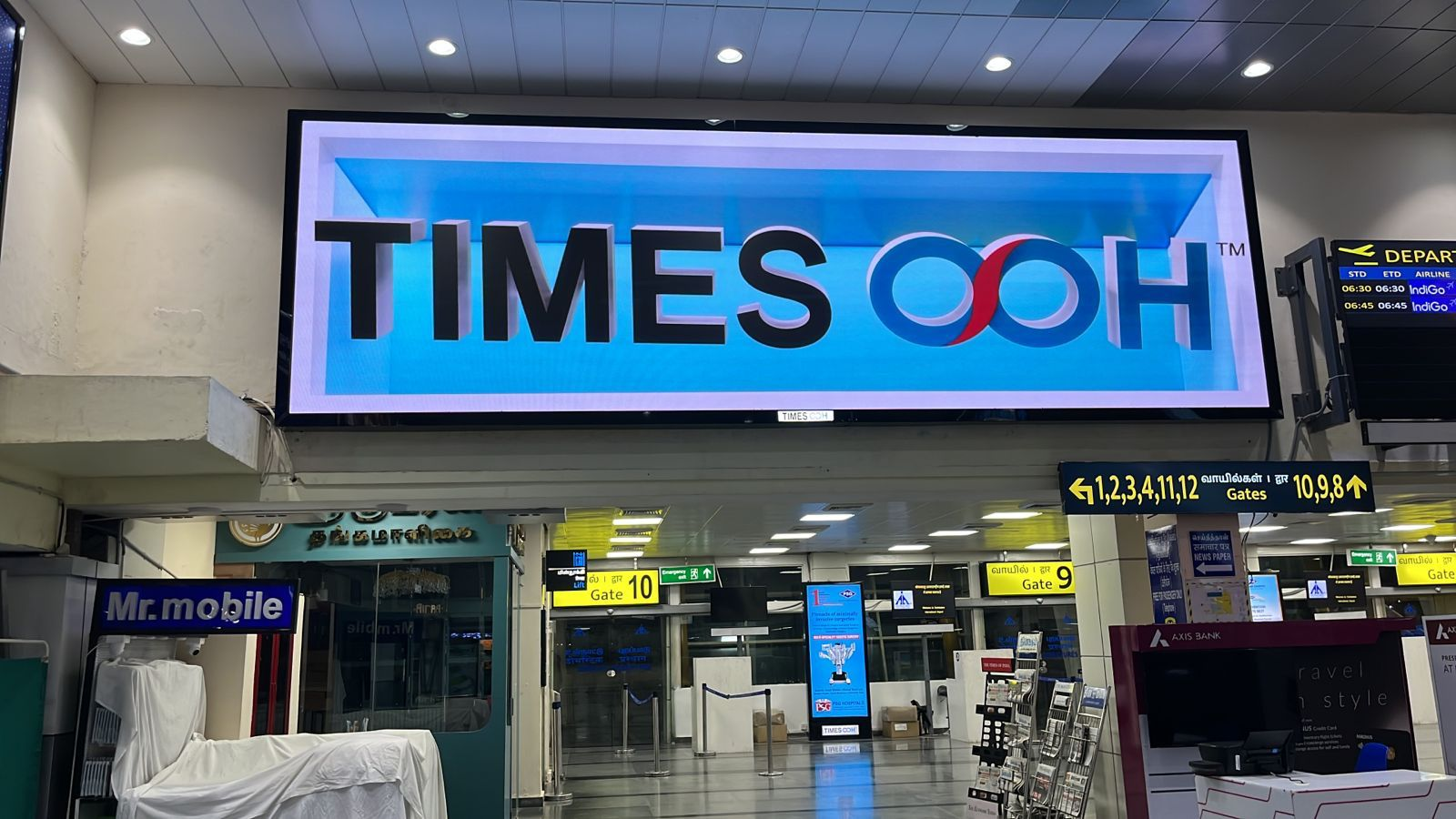

it can be used to play the Events, Showing, Cinema, Sports, etc.

Our serrvices

1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation

2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put
