In/fixed-P5-960mm
P5 indoor full color led display screen module size 320*160mm
Features:
Silent operation with widely viewing angle give you all-around visual enjoyment.
Little attenuation and good heat dissipation protect the product at an large extent.
Driving IC: making the defective phenomena, such as dark bright, virtual light avoidable.
The voltage fluctuation range is less than 5% and the stability is high.
Connector: Ensuring the stable transmission of power and signal.
Easy installation: 100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
This indoor led dancing floor support for interactive function when you touch it by your foot. And all the material is anti-skid and durable to protect dancers and the screen from damage.

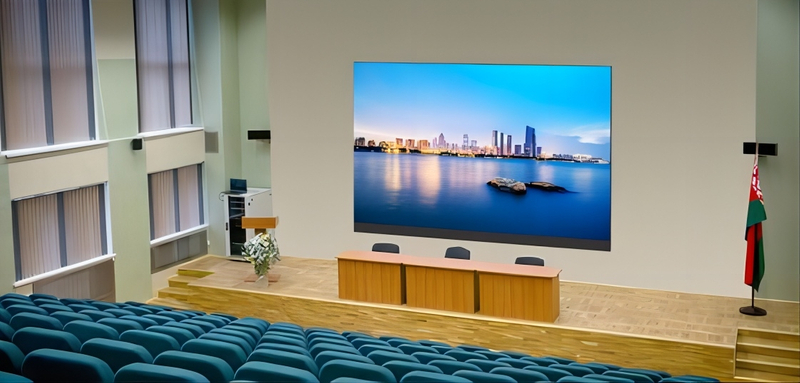

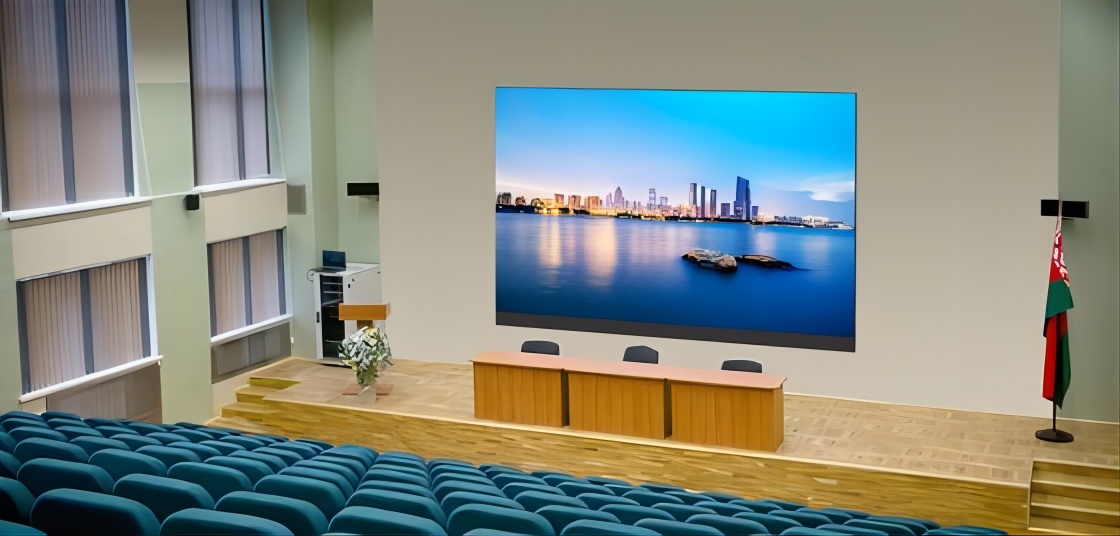

Case:Indoor Advertising,video Commercial Ad,publicity
Parameter
Item | P2-40s | P2.5-32s | P3.076-26S | P4-20S | P5-16S |
Pixel Pitch(mm) | 2 | 2.5 | 3.076 | 4 | 5 |
Pixel Configuration | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
Physical Density(Pixels/m) | 250000 | 160000 | 105625 | 62500 | 40000 |
ModuleSize(LxW)mm | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
Module weight (kg) | 0.35 | 0.2 | 0.325 | 0.32 | 0.16 |
Cabinet Size（mm） | 960×960×75 | ||||
Brightness(cd/㎡） | ≥860 | ≥860 | 700 | 700 | ≥1200 |
Gray Scale(bit) | 16 | ||||
AVE.Power Consumption(w/m) | <320 | >300 | 220 | 165 | <220 |
Frame Frequency(Hz) | 65 | ||||
Refresh Rate(Hz) | 3840 | ||||
Input Voltage | AC110 /AC240V±10% | ||||
Operating Temperature/Humidity(C/RH) | Working:-20-65℃;Storage:-40-85℃/-30℃to 60℃;humidity Rh10%to 95% | ||||
P5 indoor full color led display screen module size 320*160mm
Features:
Silent operation with widely viewing angle give you all-around visual enjoyment.
Little attenuation and good heat dissipation protect the product at an large extent.
Driving IC: making the defective phenomena, such as dark bright, virtual light avoidable.
The voltage fluctuation range is less than 5% and the stability is high.
Connector: Ensuring the stable transmission of power and signal.
Easy installation: 100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
This indoor led dancing floor support for interactive function when you touch it by your foot. And all the material is anti-skid and durable to protect dancers and the screen from damage.
Case:Indoor Advertising,video Commercial Ad,publicity
Parameter
Item | P2-40s | P2.5-32s | P3.076-26S | P4-20S | P5-16S |
Pixel Pitch(mm) | 2 | 2.5 | 3.076 | 4 | 5 |
Pixel Configuration | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
Physical Density(Pixels/m) | 250000 | 160000 | 105625 | 62500 | 40000 |
ModuleSize(LxW)mm | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
Module weight (kg) | 0.35 | 0.2 | 0.325 | 0.32 | 0.16 |
Cabinet Size（mm） | 960×960×75 | ||||
Brightness(cd/㎡） | ≥860 | ≥860 | 700 | 700 | ≥1200 |
Gray Scale(bit) | 16 | ||||
AVE.Power Consumption(w/m) | <320 | >300 | 220 | 165 | <220 |
Frame Frequency(Hz) | 65 | ||||
Refresh Rate(Hz) | 3840 | ||||
Input Voltage | AC110 /AC240V±10% | ||||
Operating Temperature/Humidity(C/RH) | Working:-20-65℃;Storage:-40-85℃/-30℃to 60℃;humidity Rh10%to 95% | ||||
