In P2.5

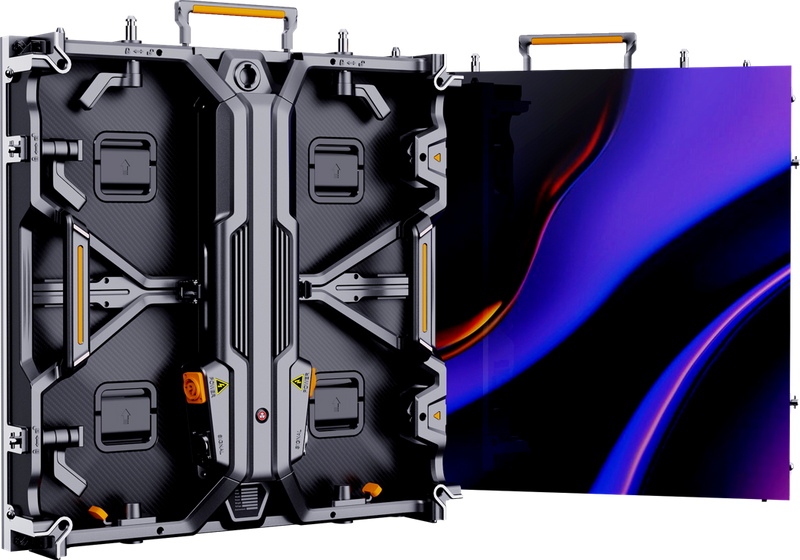

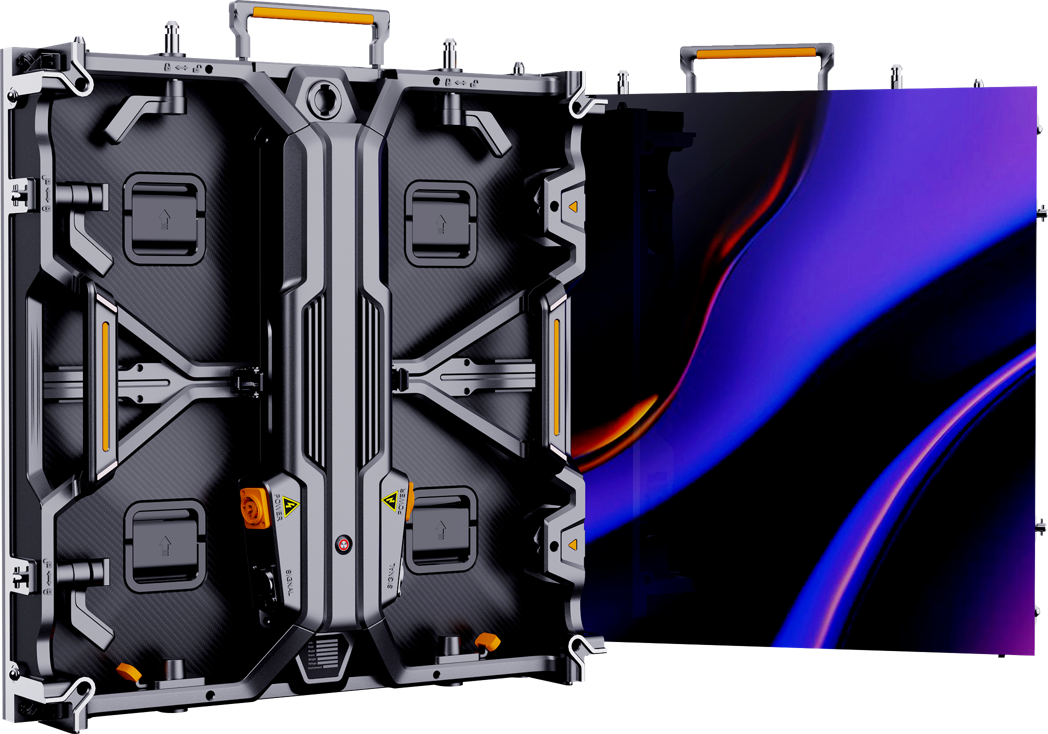

High Contrast Portable Quick Installation Waterproof Indoor Full-color Rental LED Display Screen for Exhibitions/Theaters/Auditoriums/Lecture halls/Conference Rooms / Event venues.
FEATURES:
1.Die-casting aluminum,low temp-rise
2.High refresh,low light high gray
3.High precision,seamless splicing
4.No fan,mute design,noise-free
5.Low power,Eco-friendly
6.Size: 500mm*500mm Weight: 7.5kg
Model:
In:P1.95 / P2.5 /P2.064/ P2.976 / P3.91
Out:P2.064 / P2.976 / P3.91 / P4.81
Parameters:
Item | P1.95-32s | P2.5-32s | P2.064-24S | P2.976-28S | P3.91-16S |
Pixel Pitch(mm) | 1.95 | 2.5 | 2.064 | 2.976 | 3.91 |
Pixel Configuration | SMD 3IN1-1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
Physical Density(Pixels/m) | 262144 | 160000 | 147456 | 112896 | 65536 |
ModuleSize(L×W×H)mm | 250x250 | 160x160 | 250×250 | 250×250 | 250×250 |
Cabinet Size(LxWxH)mm | 500×500×90 | 480x480x60 | 500×500×90 | 500×500×90 | 500×500×90/500×1000×90 |
Cabinet Resolution | 128x128 | 192x192 | 192×192 | 168×168 | 128×128/128×256 |
IC | ICN2163 | ICN2163 | ICN2163 | ICN2163 | ICN2163 |
Brightness(cd/㎡) | 700 | 600 | 800 | 800 | 1000 |
Gray Scale(bit) | 16 | ||||
Max.Power Consumption(w/m) | 800 | <900 | <600 | <440 | <480 |
AVE.Power Consumption(w/m) | 350 | <270 | <300 | <220 | <240 |
Cabinet Weight(kg | 7.5 | 4.2 | 7.5 | 7.5 | 7.5/15 |
Viewing Angle | H:140°;V:140° | ||||
Control Distance | Cable100m,Multimode500m,Single mode 2km | ||||
Frame Frequency(Hz) | 65 | ||||
Refresh Rate(Hz) | 3840-7680 | ||||
0Lifetime(hrs) | 100000 | ||||
Input Voltage | AC110-220V/5V 60Hz | ||||
Operating Temperature/Humidity(C/RH) | Working:-20-65℃;Storage:-40-85℃/-30℃to 60℃;humidity Rh10%to 95% | ||||
Screen Performance:
Ultra-HD
Packaged with high-quality lamps to ensure ultra-high video resolution.
High contrast ratio
High contrast ratio as a leading process to display every detail of our products brilliantly.
68.7 billion colors
Capable of to perform color rendition of up to 68.7 billion colors in a smart way, which better renders colors and expresses things on screen vividly.
Back-and-front service
Environmental-friendly structures for maintenance that is designed for all- purpose installation sites.
Modular design - hard connecting interface
Modules, power and system parts are connected through hard connecting interface, convenient to connect and use.
Seamless assembly
High-precision die-cast aluminum cabinets with space between them not large than 0.1mm.

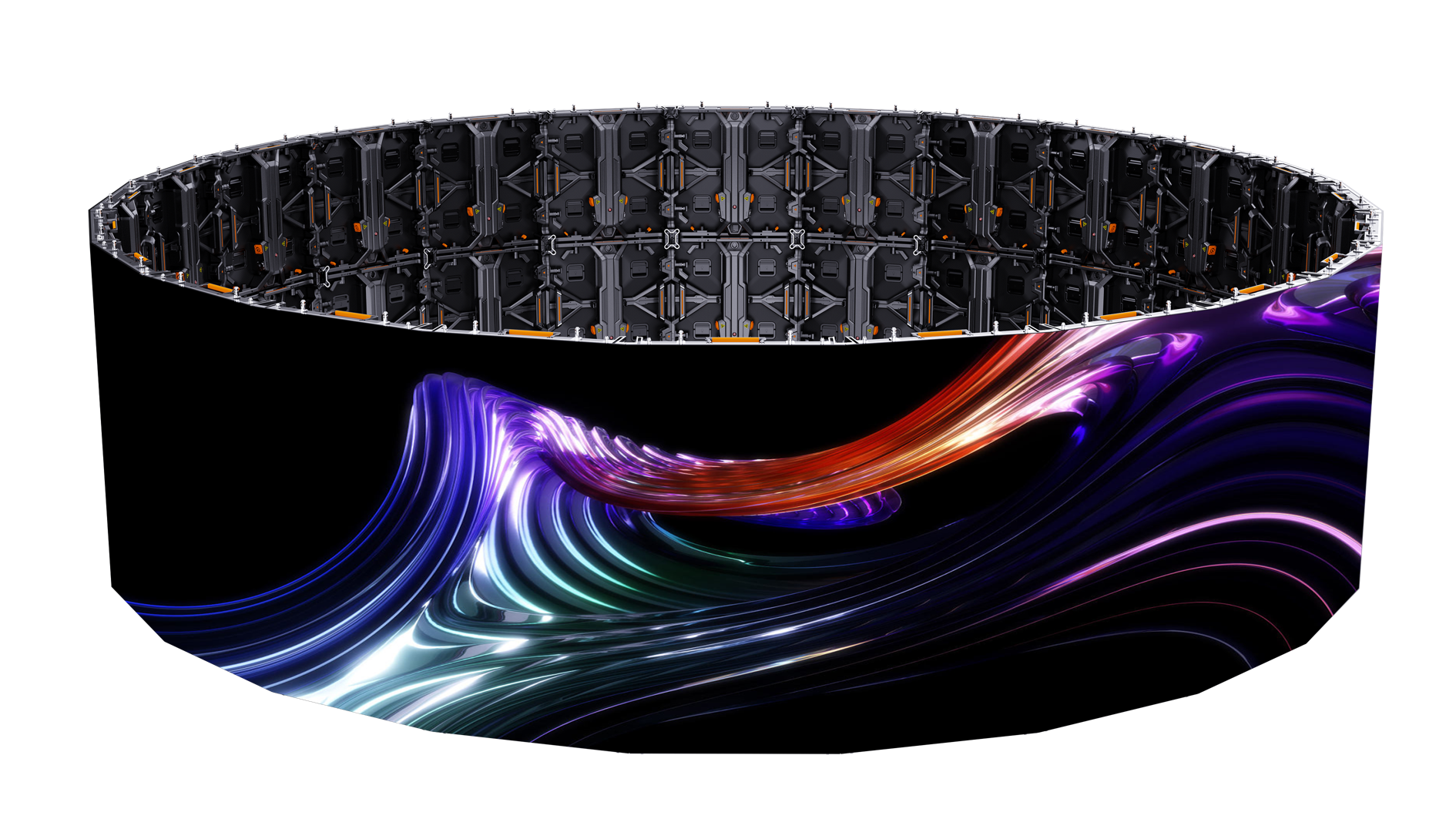

Various ways of cabinet combination
One of the highlights of R-series include portability, rich transformation. Cabinets can be suspended in parallel, arranged horizonally in a curved angle, and mounted in stories.
